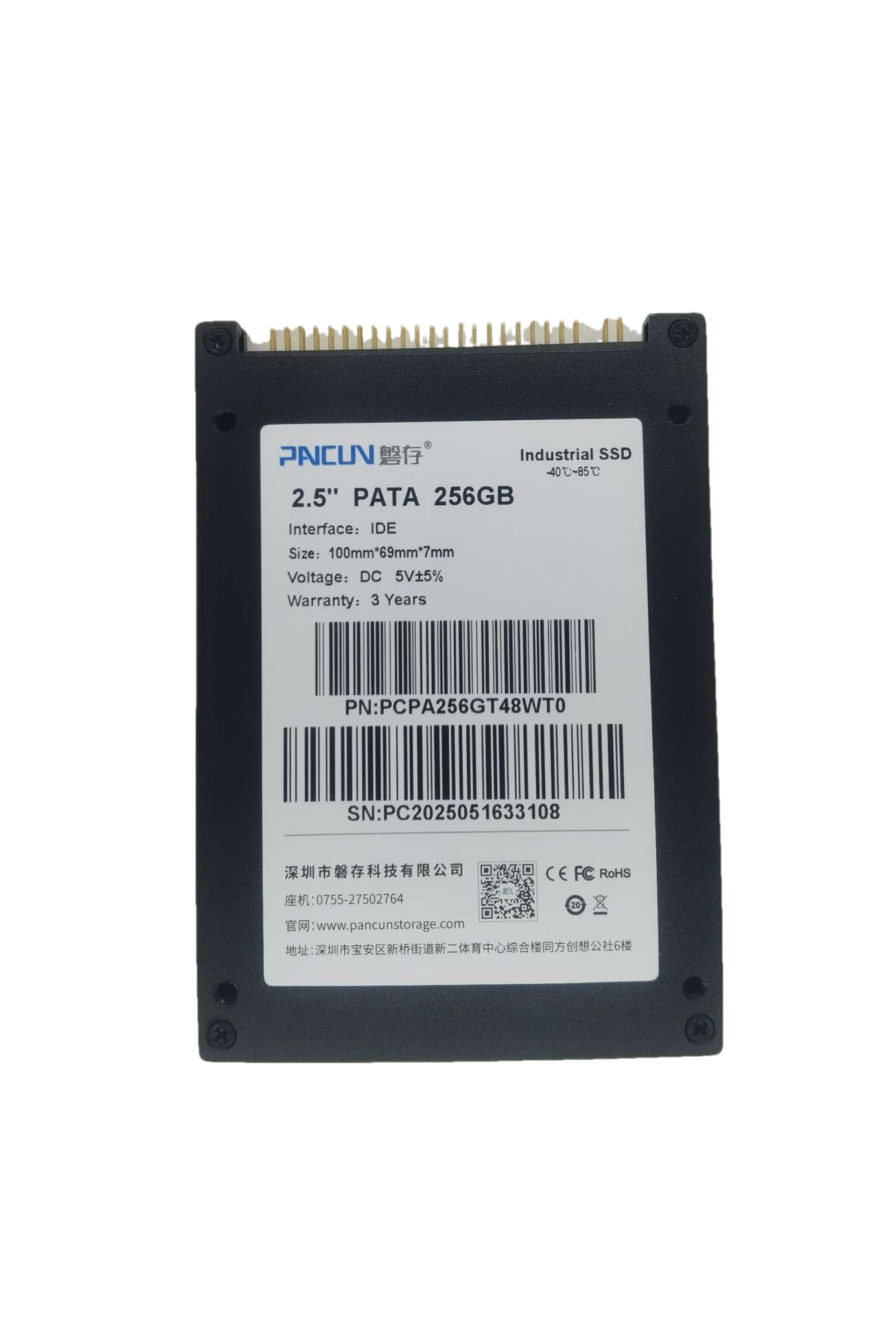

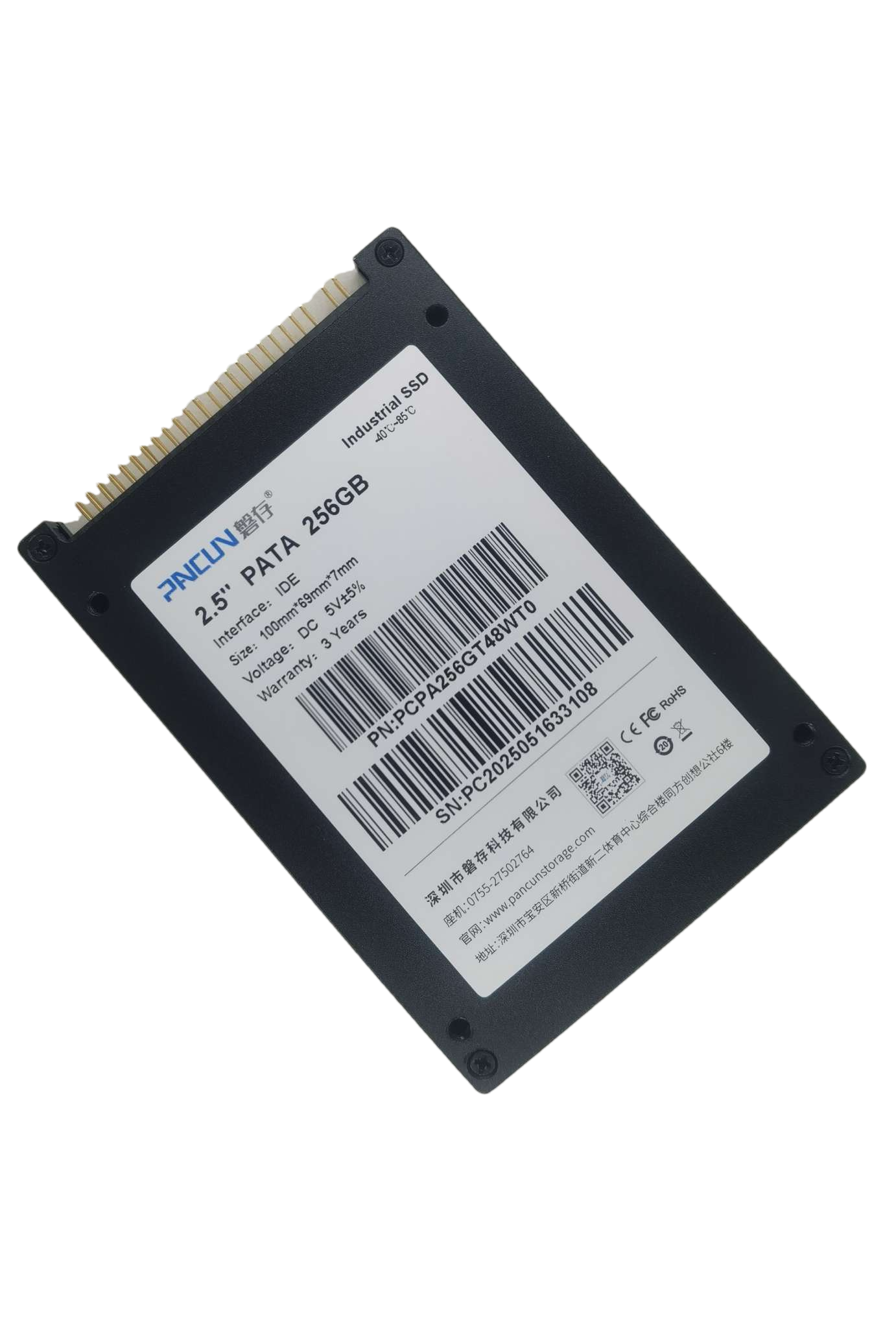

Wide temperature solid-state drive 2.5-inch PATA (IDE)

Features:
● Interface: PATA (IDE)
● Flash Media: MLC/SLC
● Capacity: MLC 16GB~512GB SLC 8GB~256GB
● Shell Thickness: 7mm
● Equipped with mature solutions and good compatibility, high stability
● LDPC technology ensures SSD reliability
● Complies with JEDEC standards
● Sequential read/write (MB/s, maximum): 430/280
● 4K read/write: 58553 iops/37013 iops
● Supports TRIM function and S M. A.R.T Function
● Operating Temperature: -40 ℃~85 ℃ Storage Temperature: -55 ℃~105 ℃
● Application Fields: Industrial motherboards, industrial computers, reinforced computers, medical equipment, industrial robots, electrical equipment, smart cities, chemical equipment, industrial gateways, financial self-service terminals, rail transportation, explosion-proof computers, sea, land, and air equipment, etc

Product application Product parameters File Download

Product application

Industrial motherboard

Product parameters

	产品型号（Model Name）	PCPAXXXGM07CT0；PCPAXXXGT27IT0；PCPAXXXGT48WT0
特性 Feature	容量 Capacity	SLC: 256MB up to 64GB MLC: 8GB up to 256GB pSLC: 4GB up to 128GB
	接口 Interface	IDE
	协议标准 Protocol Standards	/
	闪存介质 Flash Media	SLC / MLC / pSLC（ 15NM / 24NM）
	尺寸 Size	100mm70mm7mm
	支持功能 Support	Bad Block Management（坏块管理）；Static and Dynamic Wear Leveling（动静态磨损平衡管理）
性能 Performance	顺序读写 Sequential R/W	Up to 110MB/s / 80MB/s
性能 Performance	随机读写 Random R/W	/
可靠性 Reliability	TBW	/
	MTBF	2 million hours （200万小时）
	质保 Warranty	3 Years（ 3年）
运行环境 Operating Environment	工作温度 Work Temp	0℃~70℃；-20℃~75℃；-40℃~85℃
	存储温度 Storage Temp	-50℃~105℃
	工作电压 Operating Voltage	5.0V±5%
	应用领域	工控设备，轨道交通，舰载电脑，雷达，加固计算机等...
