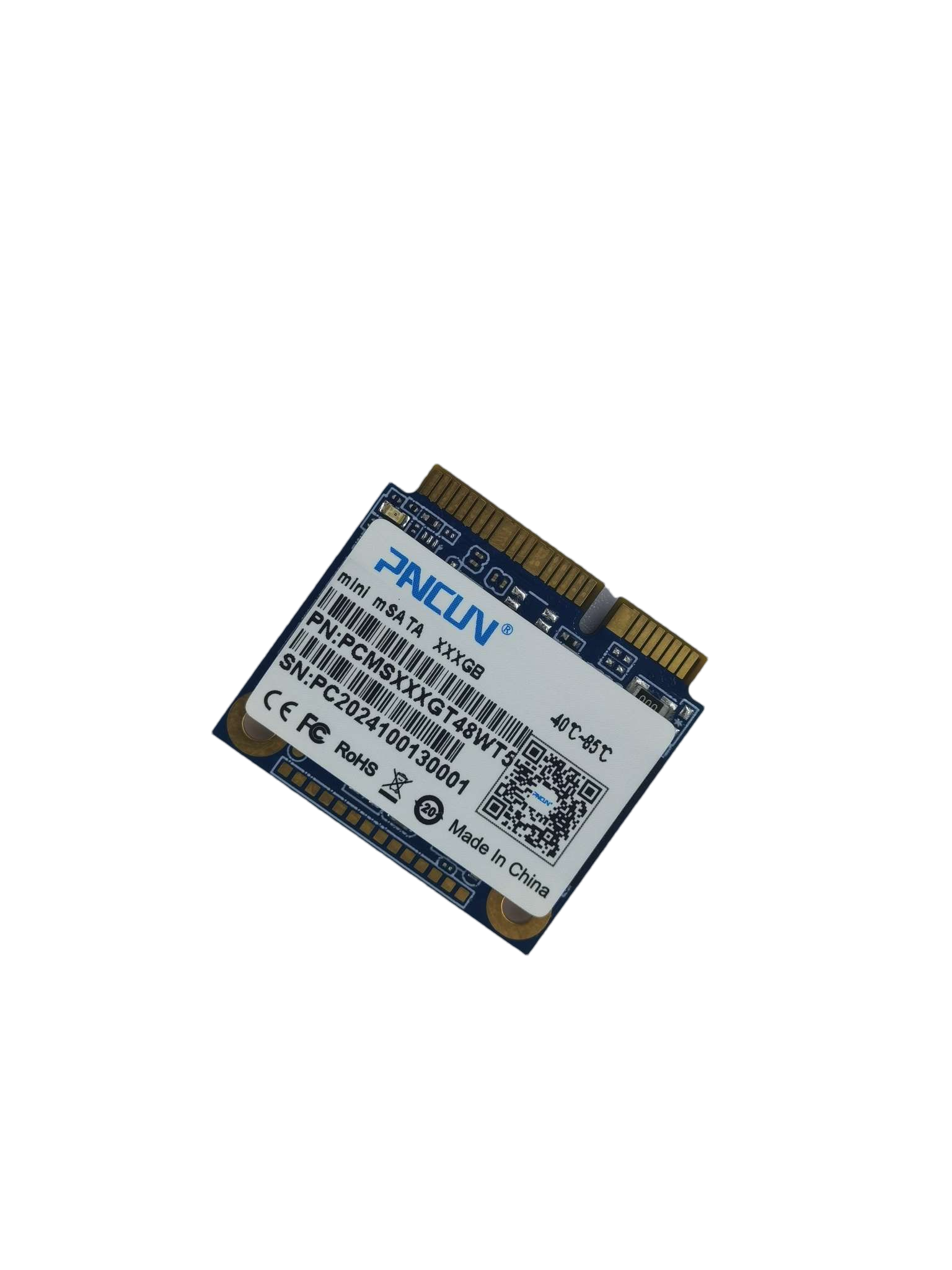

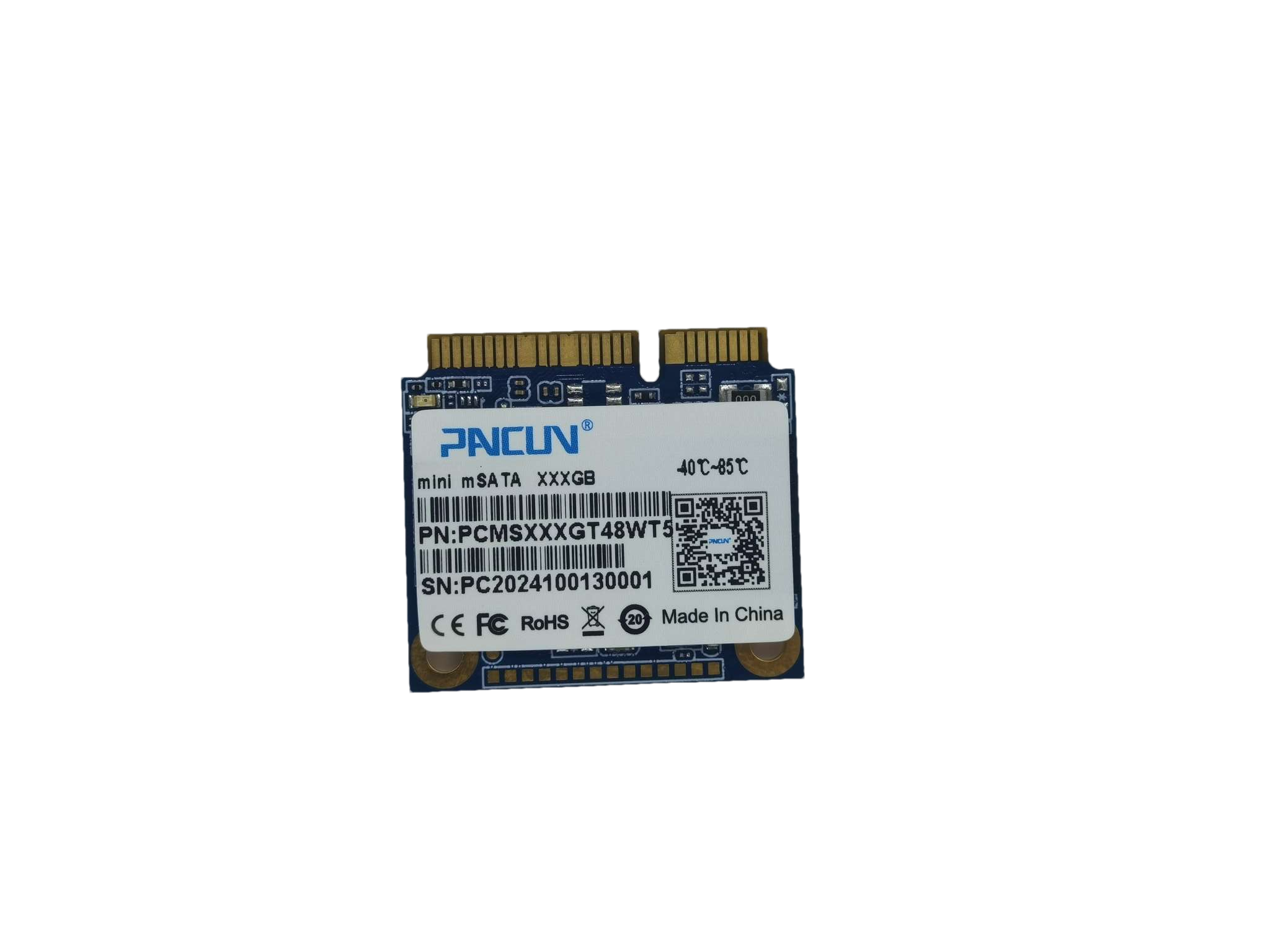

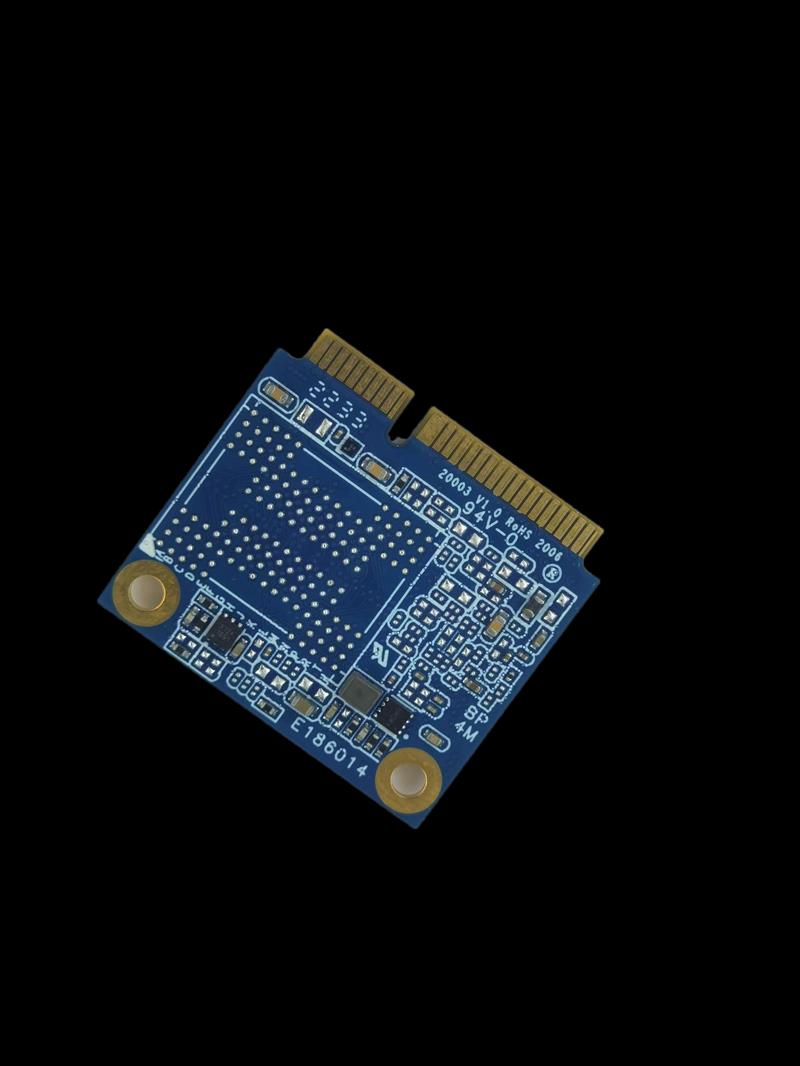

MSATA半高



● 宽温PCB板材和30μ金手指设计，满足宽温工作环境。

● 采用国际知名PHISON主控+KIOXIA存储芯片。

●  容量高达1TB

●  高达5000TBW

Product application Product parameters File Download

      Product application


Product parameters



产品型号（Model Name）PCMSXXXGM07CTH；PCMSXXXGT48WTH
特性
Feature		容量 Capacity￭ MLC: 32GB up to 256GB
￭ pSLC: 16GB up to 128GB
￭ SLC: 8GB up to 64GB
￭ 3D Bics3: 64GB up to 512GB
￭ Bics3 pSLC: 16GB up to 128GB
￭ 3D Bics4: 32GB up to 1TB
￭ Bics4 pSLC: 16GB up to 128GB
接口 InterfaceMSATA MINI
协议标准 Protocol StandardsSATA
闪存介质 Flash MediaMLC / SLC / pSLC
尺寸 Size26.8mm(L) x 29.85mm(W) x 3.7mm(H)
支持功能 SupportBad Block Management（ 坏块管理）；Static and Dynamic Wear Leveling（ 动静态磨损平衡管理 ），S.M.A.R.T，TRIM，LPDC，RAID ECC
性能
Performance		顺序读写 Sequential R/WUp to 550MB/s / 480MB/s
随机读写 Random R/W/
可靠性
Reliability		功耗工作模式 Active mode: < 1950 mW
休闲模式 Idle mode: <325 mW
MTBF3 million hours （300万小时）
质保 Warranty3 Years（ 3年 ）
运行环境
Operating Environment		工作温度 Work Temp0℃~70℃；-40℃~85℃
存储温度 Storage Temp-50℃~105℃
工作电压 Operating Voltage5.0V±5%
应用领域工控设备，轨道交通，电力设备，工业主板，工业电脑等...
